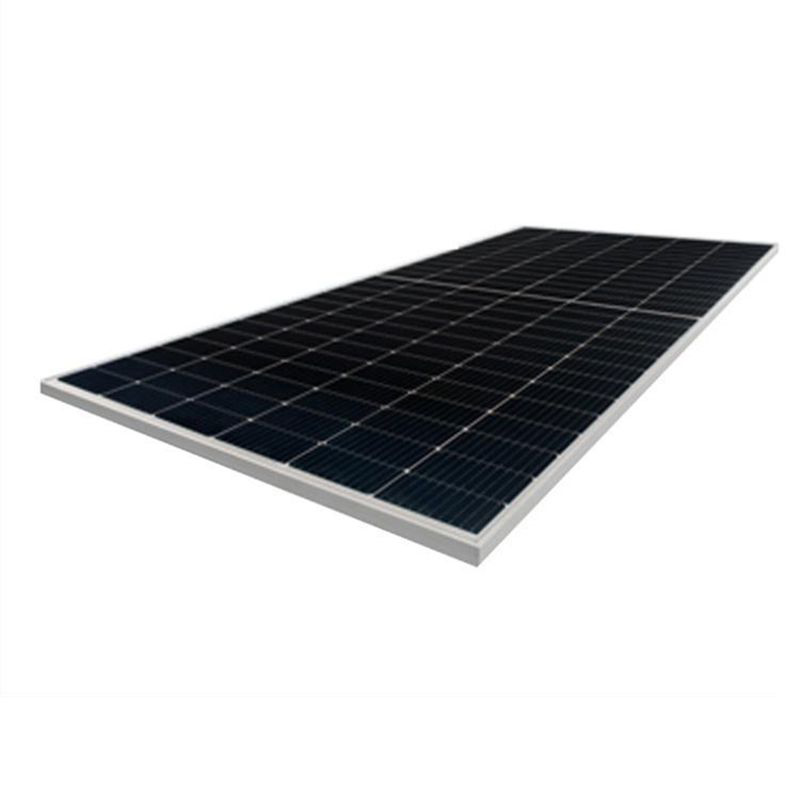

450-470 Watt Monocrystalline Solar Panels

450-470 Watt Monocrystalline Solar Panels

450-470 Watt Monocrystalline Solar Panels

Mechanical Parameters

  • Cell type: P-type monocrystalline solar cells
  • No. of cells: 120(6×20)
  • Module dimensions: 1903×1134x30mm
  • Weight: 24.2kg
  • Front glass: 3.2 mm, anti-reflection coating, high transmission, low iron, tempered glass
  • Frame: Anodized aluminium alloy
  • Junction box: IP67 rated
  • Output cables: TÜV 1×4.0mm2
    (+):400mm,(-):200mm or customized length
Request a Quote
Description

450-470 Watt monocrystalline solar panels feature an IP67 rated junction box that effectively protects against dust ingress and short immersion. This series solar panels boasts a remarkable module efficiency of 20.85%-21.78%, a high conversion efficiency, and they are designed to operate in extreme environments ranging from -40℃ to +85℃.

Applications

450-470 Watt monocrystalline solar panels are widely used in various applications by efficiently converting solar energy into power, such as road video surveillance, forest fire monitoring, water facilities monitoring, agricultural irrigation monitoring, reservoir dam monitoring, flash flood warning systems, fishery and pastoral area monitoring, and telecommunication mobile base stations.

Electrical Parameters
Module model
JKM450M-60HL4
JKM455M-60HL4
JKM46QM-60HL4
JKM465M-6QHL4
JKM47OM-60HL4
STC NOCT STC NOCT STC NOCT STC NOCT STC NOCT
Max. power (Pmax) 450Wp 335wp 455Wp 339wp 4&0Wp 342wp 465wp 346wp 470Wp 350Wp
Max. power voltage (Vmp) 33.91V 31.73V 34.06V 31.91V 34.20V 32.07V 34.37V 32.12V 34.56V 32.32V
Max. power current (Imp) 13.27A 10.55A 13.36A 10.61A 13.45A 10.67A 13.53A 10.77A 13.60A 1082A
Open circuit voltage (Voc) 41.18V 38.87v 41.33V 39.01v 41.48V 39.15V 41.63V 39.29v 41.78V 39.43v
Short circuit current (lsc) 13.85A 11.19A 13.934 11.25A 14.01A 11.32A 14.09A 11.38A 14.17A 11.44A
Module efficiency (%) 20.85% 21.08% 21.32% 21.55% 21.78%
Operating temperature (C) -4O℃~+85℃
Max. system voltage 1000/1500VDC (IEC)
Max. series fuse rating 25A
Power tolerance 0~+3%
Temperature coefficient of Pmax -0.35%/℃
Temperature coefficient of Voc -0.28%/℃
Temperature coefficient of Isc 0.048%/"℃
Nominal operating cell temperature (NOCT) 45±2℃

Standard test conditions (STC): Solar Irradiance: 1000W/m2, Cell Temperature: 25°C, Air Mass: 1.5
Nominal Operating Cell Temperature (NOCT): Solar Irradiance: 800W/m2, Ambient Temperature: 20°C, Air Mass: 1.5, Wind Speed: 1 m/s
* The power measurement error of the solar panel is +/-3%.
Are you looking for cost-effective solutions for power generation facilities? You can rely on HT SOLAR, a trustworthy manufacturer of solar power generation systems. We are capable of providing comprehensive solar power systems with custom power generation solutions to help customers reduce energy bills while ensuring reliable power supply. Apart from our solar energy systems, we also provide a range of solar system components that are required in solar power plants, such as solar panels, solar inverters, solar batteries and other solar accessories. That is to say, we are one stop source for renewable energy system.
For over 15 years, our company has cultivated a wealth of experience within various industries, including the Vietnam Cultural Friendship Palace, Cambodia Military Base, Jamaica North-South Highway, Guyana Georgetown Pegasus Hotel, Eritrea Civil Explosive Factory, Ethiopia Coal Mine and more. We strive to deliver the ultimate solution and experience with our high-quality products and professional services, leaving our customers feeling satisfied.
