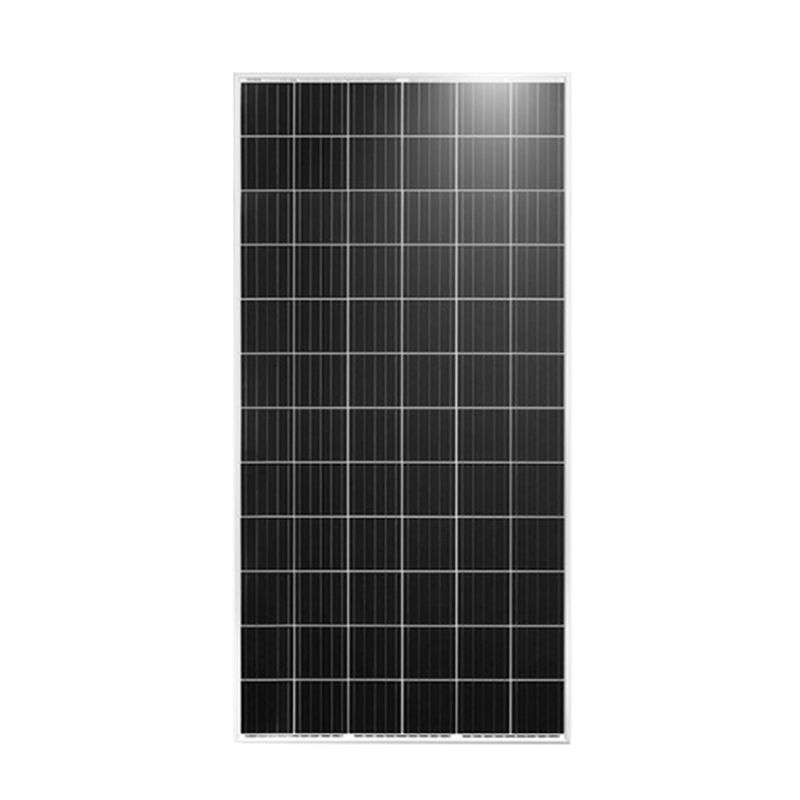

395-415 Watt Monocrystalline Solar Panels

395-415 Watt Monocrystalline Solar Panels

395-415 Watt Monocrystalline Solar Panels

Mechanical Parameters

  • Cell type: P-type monocrystalline solar cells
  • No. of cells: 108(2×54)
  • Module dimensions: 1722×1134×30mm
  • Weight: 22kg
  • Front glass: 3.2 mm, anti-reflection coating, high transmission, low iron, tempered glass
  • Frame: Anodized aluminium alloy
  • Junction box: IP68 rated
  • Output cables: TÜV 1×4.0mm2
    (+):400mm, (-):200mm or customized length
Request a Quote
Description

395-415 Watt monocrystalline solar panels come with IP68 rated junction boxes that meet the highest standards for dust and water resistance. With module efficiencies ranging from 20.23% to 21.25%, this series solar panels deliver high conversion efficiencies and can operate in extremely harsh environmental conditions, ranging from -40℃ to +85℃.

Applications

395-415 Watt monocrystalline solar panels are widely used in various applications by efficiently converting solar energy into power, such as road video surveillance, forest fire monitoring, water facilities monitoring, agricultural irrigation monitoring, reservoir dam monitoring, flash flood warning systems, fishery and pastoral area monitoring, and telecommunication mobile base stations.

Electrical Parameters
Module model
JKM395M-54HL4
JKM40OM-54HL4
JKM405M-54HL4
JKM410M-54HL4
JKM415M-54HL4
STC NOCT STC NOCT STC NOCT STC NOCT STC NOCT
Max. power (Pmax) 395wp 294wp 40Owp 298wp 40Swp 301wp 410Wp 305Wp 415wp 309wp
Max. power voltage (Vmp) 30.32V 28.26V 30.42V 28.42V 30.52V 28.56V 30.62V 28.72V 30.79V 28.88V
Max. power current (Imp) 13.03A10.4DA 13.15A 10.47A 13.27A 10.55A 13.39A 10.62A 13.48A 10.69A
Open circuit voltage (Voc) 36.90V 34.83V 36.98v 34.9ov 37.06v 34.98v 37.14V35.05v 37.31v35.21v
Short circuit current (lsc) 13.71A 11.07A 13.78A 11.13A 13.85A 11.19A 13.92A11.24A 14.01A11.32A
Module efficiency (%) 20.23% 20.48% 20.74% 21.00% 21.25%
Operating temperature (℃) -40℃~+85℃
Max. system voltage 1000/1 500VDC(IEC)
Max. series fuse rating 25A
Power tolerance 0~+3%
Temperature coefficient of Pmax -0.35%/C
Temperature coefficient of Voc -0.28%/C
Temperature coefficient of Isc 0.048%/℃
Nominal operating cell temperature (NOCT) 45±2℃

Standard test conditions (STC): Solar Irradiance: 1000W/m2, Cell Temperature: 25°C, Air Mass: 1.5
Nominal Operating Cell Temperature (NOCT): Solar Irradiance: 800W/m2, Ambient Temperature: 20°C, Air Mass: 1.5, Wind Speed: 1 m/s
* The power measurement error of the solar panel is +/-3%.
