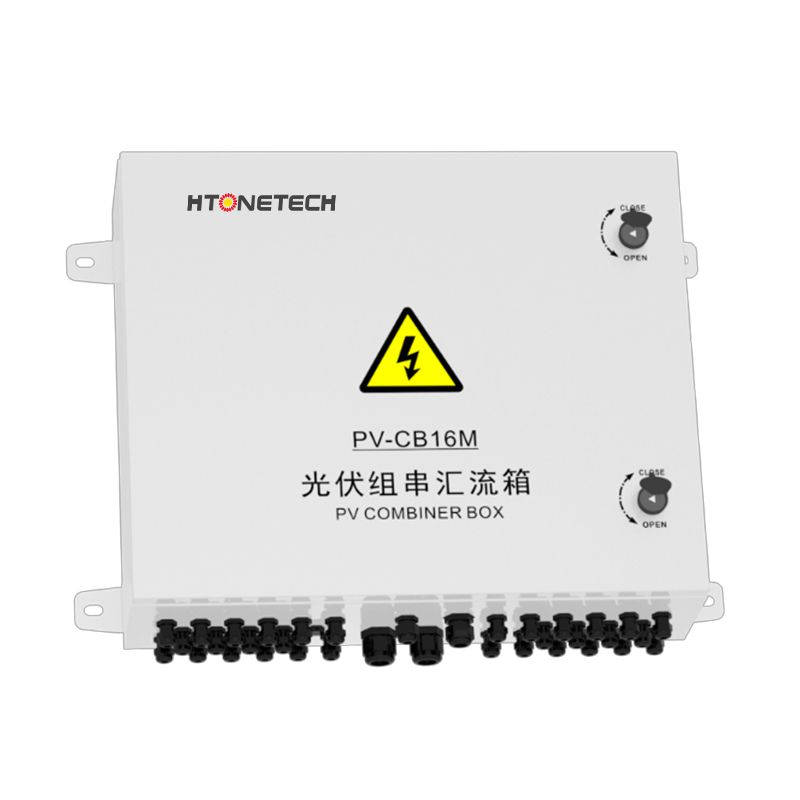

Features
- Designed to meet IP65 standards, this product offers outstanding waterproof, dustproof, rustproof and sun protection features, making it ideal for outdoor installation and use.
- Multiple solar panel arrays can be accessed simultaneously.
- The maximum VOC of each connected array can reach DC1000V.
- With multiple protection control, the positive and negative terminals of each circuit are equipped with high-voltage DC fuses (maximum current is 20A), and their withstand voltage value can reach DC1000V.
- Dedicated lightning protectors are equipped respectively between the combined output positive pole and ground, negative pole and ground, positive pole and negative pole. This protector device is selected from premium brands.
- The combined DC output terminal is equipped with an interruptible DC circuit breaker, which is selected from premium brands.
Technical Parameters
| Model | HLX-PV6/1 | HLX-PV8/1 | HLX-PV12/1 | HLX-PV16/1 |
| Electrical Parameters |
| Max. DC voltage | 1000 | 1000 | 1000 | 1000 |
| Max. input current for each string | 20A | 20A | 20A | 20A |
| Max. input strings | 6 | 8 | 12 | 16 |
| Max. output switch current | 20A/32A | 125A | 160A | 200A |
| Number of inverter MPPT | N | N | N | N |
| Number of output strings | 1 | 1 | 1 | 1 |
| Surge Protection |
| Protection class | Ⅱ | Ⅱ | Ⅱ | Ⅱ |
| Nominal discharge current | 20kA | 20kA | 20kA | 20kA |
| Max. discharge current | 40kA | 40kA | 40kA | 40kA |
| Voltage protection level | 3.8kV | 3.8kV | 3.8kV | 3.8kV |
| Max. continuous operating voltage | 1050V | 1050V | 1050V | 1050V |
| Poles | 3P | 3P | 3P | 3P |
| Connection | Plug-in connection | Plug-in connection | Plug-in connection | Plug-in connection |
| System |
| Protection grade | IP65 |
| Output switch | DC circuit breaker (standard) / DC isolation switch (optional) |
| SMC4 waterproof connector | Standard |
| PV DC fuse | Standard |
| PV DC surge protector | Standard |
| Monitoring module | Optional |
| Anti-reverse diode | Optional |
| Enclosure | Metal |
| Installation | Wall mount |
| Operating temperature | -25℃~+55℃ |
| Altitude | 2000m |
| Allowable relative humidity | 0~95%, no condensation |
